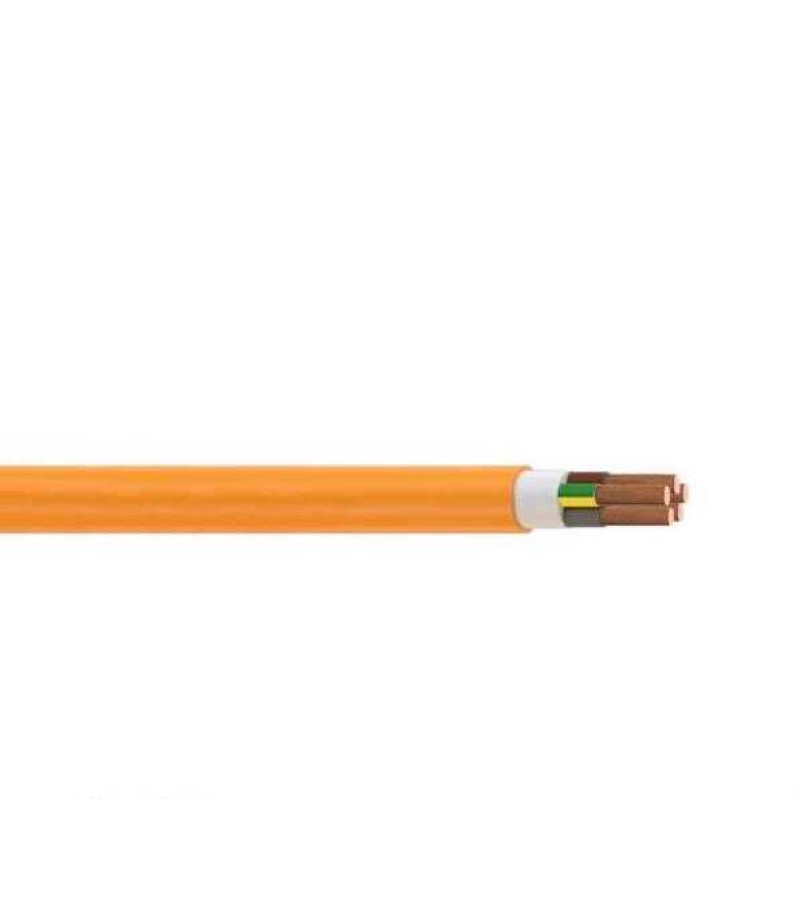

UNAL KABLO 5×4 mm² N2XH FE 180 Electrical Cable (Multicore). The UNAL KABLO 5×4 mm² N2XH FE 180 electrical cable is a high-safety cable with fire-resistant properties. It is designed for applications where increased fire protection is required, including hospitals, shopping centers, tunnels, high-rise buildings, and other critical facilities.
The cable is halogen-free, provides low smoke emission, and maintains its operational performance when exposed to fire.
Main Specifications:
- Manufacturer: UNAL KABLO (Ünal Kablo)
- Model: N2XH FE 180
- Conductor material: Copper
- Number of cores: 5
- Cross-section of each core: 4 mm²
- Core configuration: 5 internal conductors — three-phase system (L1, L2, L3) + neutral (N) + protective earth (PE)
- Insulation / sheath: Halogen-free, low smoke emission, flame-resistant construction with maintained functionality during fire exposure
- Fire resistance: FE 180 — fire-resistant cable classification
- Rated voltage: 0.6/1 kV
- Permitted installation temperature: up to -15°C
- Application areas: Hospitals, shopping centers, tunnels, high-rise buildings, and other facilities requiring enhanced fire safety standards
The Turkish company ÜNAL KABLO manufactures products to simplify the transmission, distribution, and supply of electricity. The "Unal Kablo" product range includes power cables, signal and control cables, fire-resistant cables, instrumentation cables, ship and yacht cables, data cables, telecommunication cables, coaxial cables, special cables, plug cables (power cords), solar cables, silicone cables, and bare conductors. Our company plays a global role, exporting 60 percent of its production to more than 70 countries across 5 continents.
Looking for a different cable? Take a look at: The UNAL KABLO 5 × 120 mm² N2XH power cable
